    microcutting

    Comparison of micro-waterjet, laser, EDM, NC, ... cutting

    micro-waterjet

    [MicroMAX at OMAX Demo Lab - https://www.omax.com/omax-waterjet/micromax]

    solid-state laser micromachining

    ultrafast laser micromachining

    EDM

    NC

    Fablight fiber laser

    Machining time: ~5 min

    Cost of machine: sheet only machine with the 3000 laser is around $80,000, and the tube & sheet is around $90,000

    Machine settings:

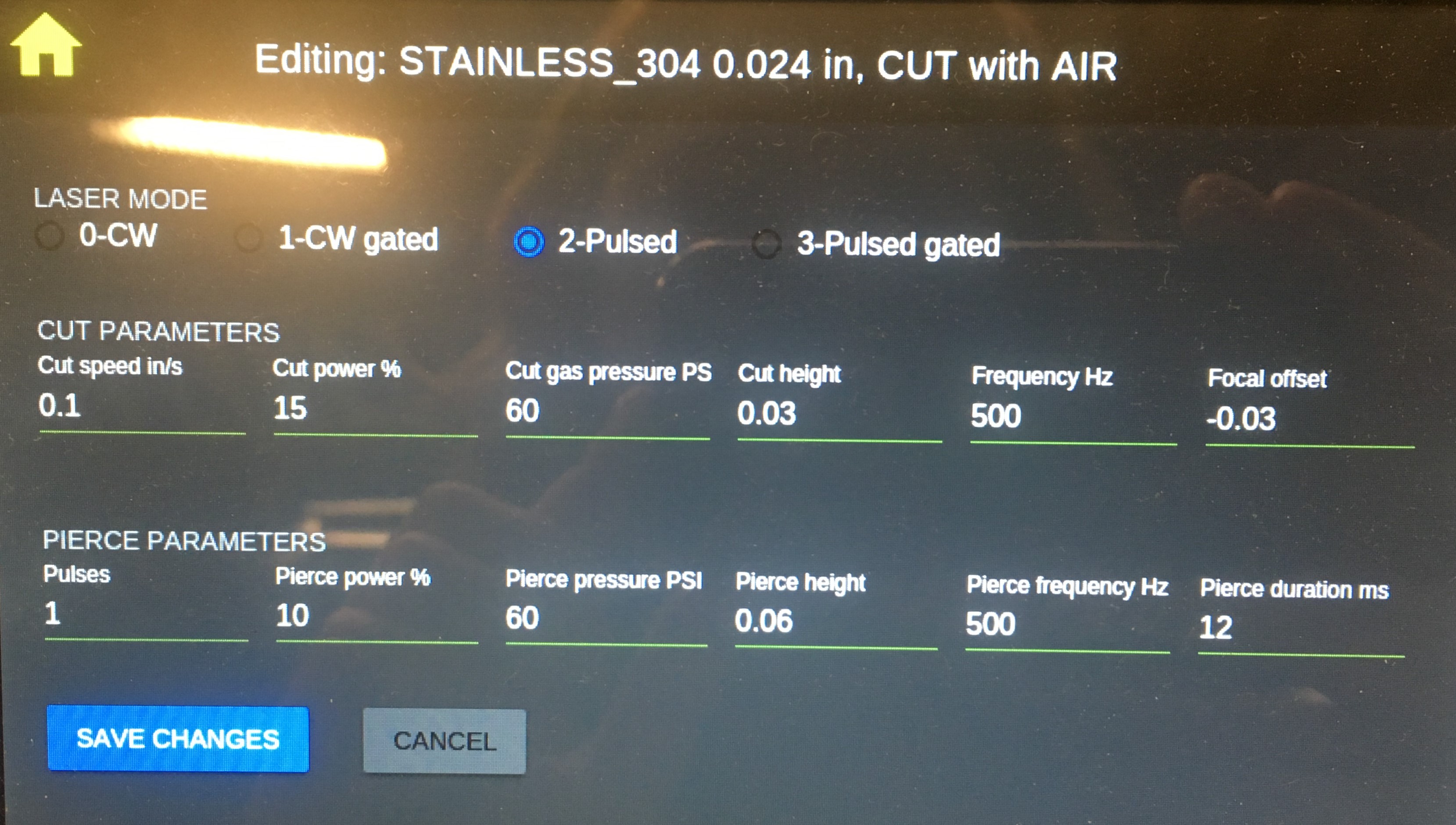

    Fablight settings

    Sample photos:

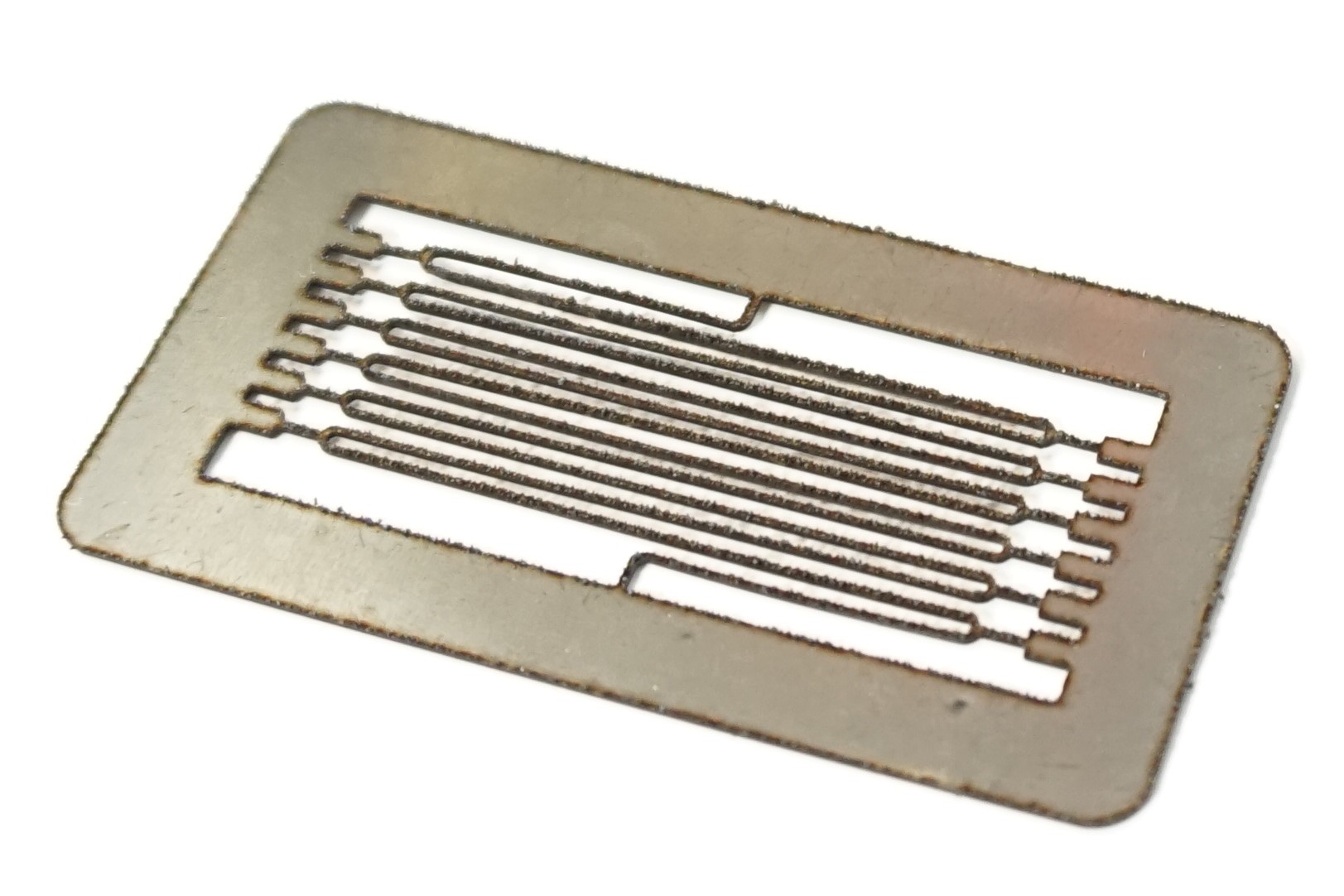

    fablight 1

    fablight 3

    fablight 5

    After burr removal

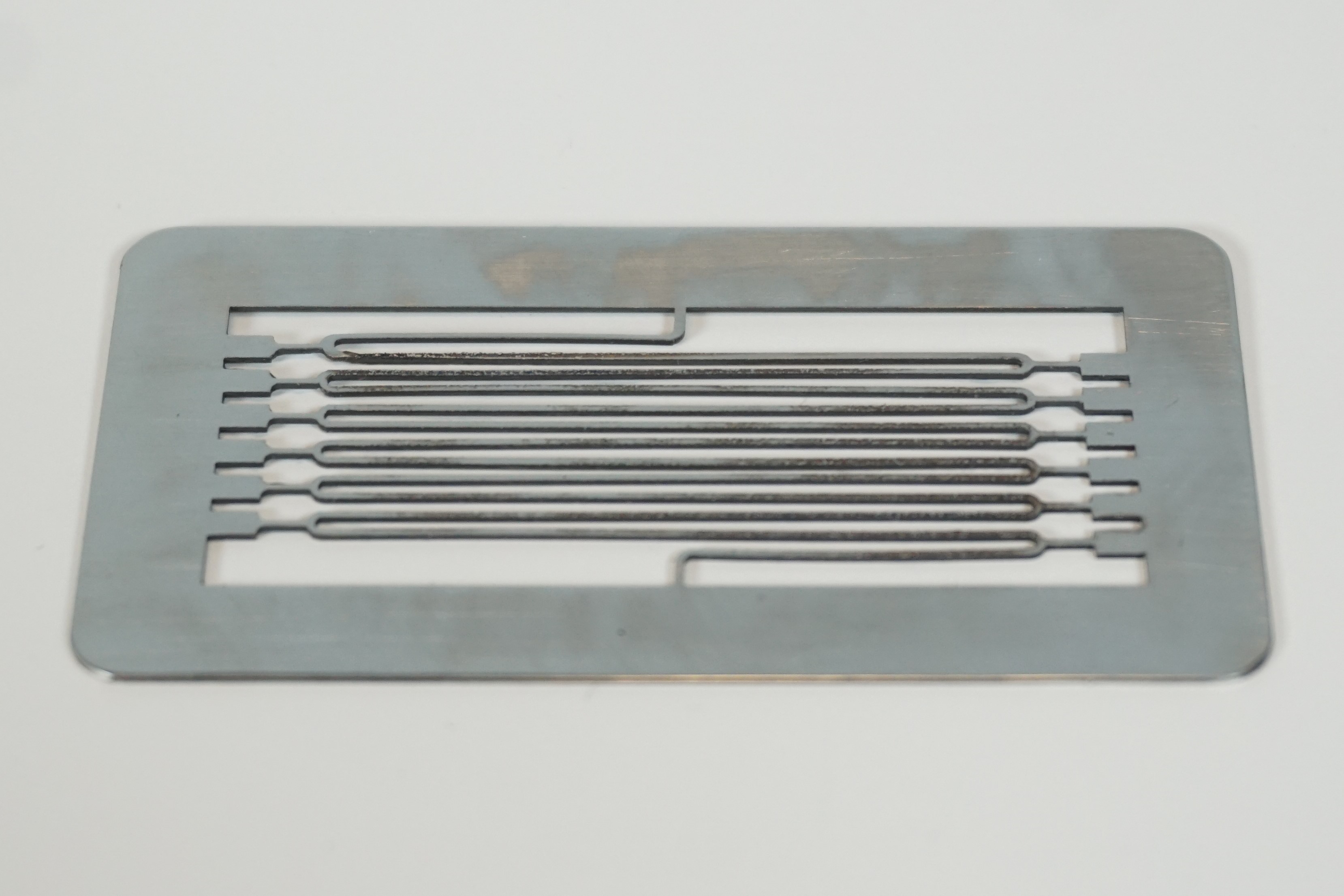

    fablight 6

    The brown seen on the edges of the piece are burn marks where the machine cut.

    fablight 7

    fablight 8

    ...
